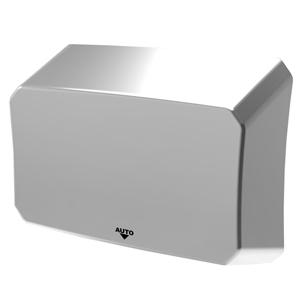

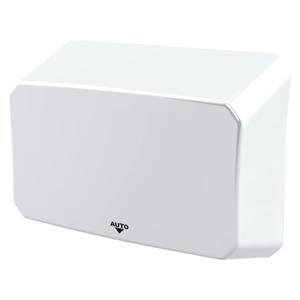

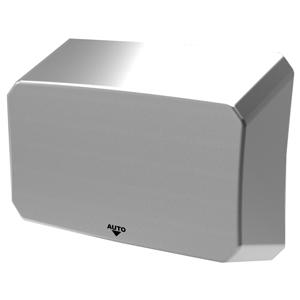

EcSlender (ADA High Speed Thin Hand Dryer)

Slim Shape (10cm thickness) ADA-compliant Jet Hand Dryer

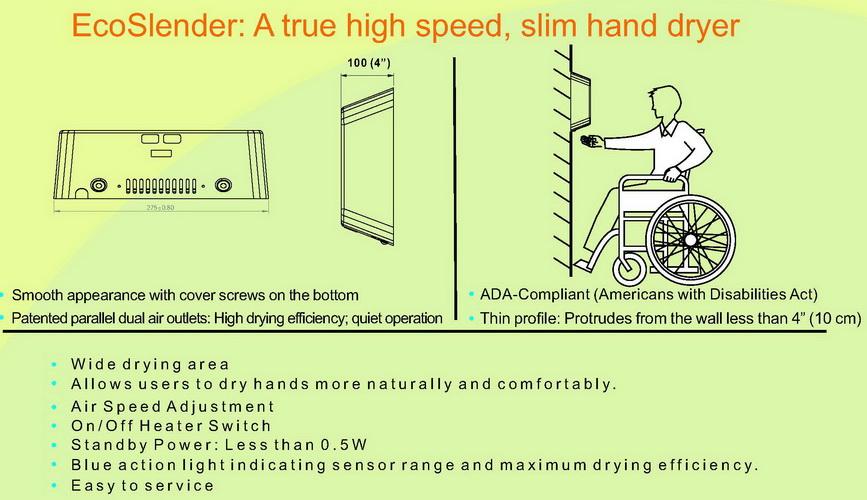

The thin profile of this type only protrudes 4 inches (10 cm) from the wall. It is ADA-Compliant (Americans with Disabilities Act) and has a sleek appearance with elegance. The patented parallel dual air outlets result in high drying efficiency with quiet operation. It is suitable for a modern design washroom.

Automatic High Speed Hand Dryer

• Material : Steel
• Operation Power : 1000 W
• Drying Time: Less than 15 seconds

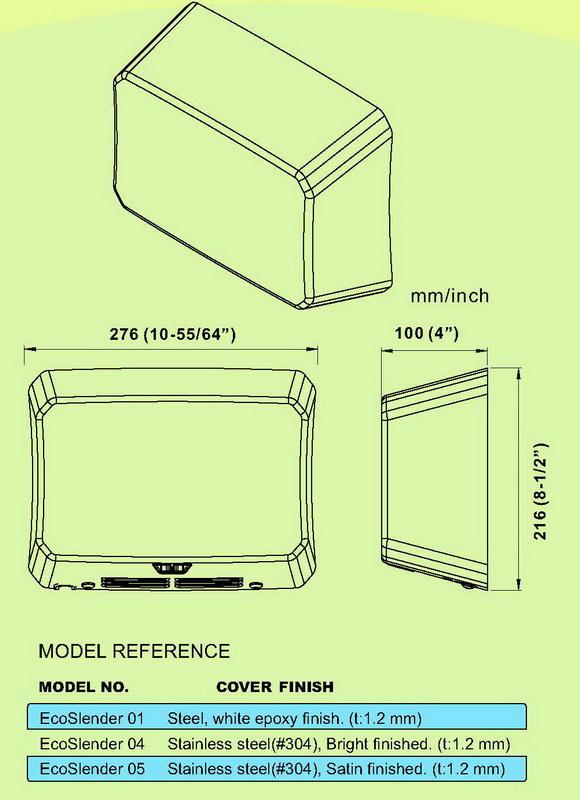

• Unit Size: 276 mm W x 216 mm H x 100 mm D
• Weight: N.W 3.4 kgs (7.5lbs), G.W. 3.8 kgs (8.4lbs)
• Circuit Operation: Infrared Automatic, self adjusting
• Sensor Range: Auto adjust; standard 6?[15 cm? cm]
• Sound Level: 75 +/- 1 dB at 1 m
• Isolation: CLASS 1
• Drip proof: IP23
• Standby Power: Less than 0.5W

Techinical Specifications

• Operating Voltage: 110-120V, 50/60Hz, 0.84-1.0kW; 220-240Vac, 50/60Hz, 0.84-1.0kW
• Warm Air Speed Output: 35 - 70 m/s [79 - 158 mph]
• Dryer delivers: 91.3 m?h, (53.8 CFM)
• Motor Type: 11/16HP, 250 - 500W, 15000 - 26000 R.P.M, Brush Type: Dual Ball Bearings
• Motor Thermal Protection: Auto-resetting Thermostat turns unit off at 105 degree C [221 degree F]
• Air Output Temperature: 55 degree C [131 degree F] (Ambient Temp. 25 degree C [77 Degree F])
• Heater Element: 500W
• Heater Thermal Protection: Auto Resetting Thermostat turns unit off at 85°C [185°F]
• Timing Protection: 60 Seconds auto shut off
• Safety Approvals:


Model

• EcMo21: White
• EcMo22: Silver
• EcMo23: White and Gray
• Worldwide Patents: USA, Europe, Taiwan, China
• Certification: UL; cUL; GS/TUV; CE/EMC, LVD; CB/TUV; RoHS; WEEE
• GreenSpect Listed; Wheel Chair Friendly
