EcMo23 Wheelchair Friendly with HEPA Filter High-speed Hand Dryer

EcMo23 Wheelchair Friendly with HEPA Filter High-speed Hand Dryer

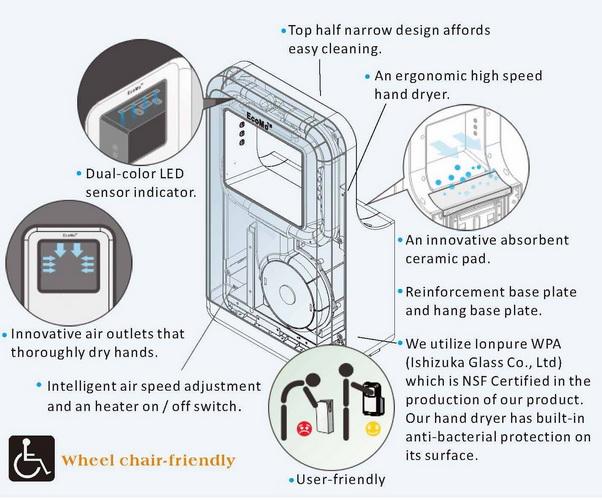

This is an ergonomic, wheelchair-friendly hand dryer. It is equipped with an anti-bacterial ABS protection cover and a 3-layers super HEPA filter to prevent 99% bacteria and germs. Also, it has the absorbent ceramic pad that prevents water overflow. It is suitable for disabled washrooms and heavy traffic public spaces.

• Casing: Plastic
• Material: Plastic
• Operation Power: 1200 W
• High Brightness LED to Increase the Ease and Delight of Use
• Standby: Color Red; Active: Color Blue
• Drying Time: Less than 10-15 seconds
• Drip Proof: IP 23; Isolation: Class 1
• PATENT: USA, EUROPE, CHINA, TAIWAN
• Motor Type: 1HP, 400-750W, 11000-20000 R.P.M., adjustable
• Warm Air Speed Output:65-100 m/s (140-224 mi/hr), adjustable
• Dryer Shall Deliver: 89-124 m3/h (55-76 CFM), adjustable
• Heater Element: ON/OFF heating options. 300-450W, adjustable
• N.W.: 10.8 kg (23.8 lbs); G.W.: 12.8ks (28.2 lbs)
• Unit Size: 322mmW x 624.5mm H x 185mm D [12-43/64" W x 24-19/32"H x 7-9/32"D] (including drain tray)
• Capacity of Drain Tray: 200 cc

Techinical Specifications

• Operating Voltage: 110V-120Vac, 50/60 Hz, 9.2-10 A, 1.0-1.2kW
• Operating Voltage: 220V-240Vac, 50/60 Hz, 9.2-10 A, 1.0-1.2kW
• Standby Power: Less than 0.5W
• Circuit Operation: Infrared Automatic, self adjusting
• Sensor Range: 12 cm +/- 1 cm [4-23/32"]
• Motor Thermal Protection: Auto resetting thermostat turns unit off, 120V at 135 Degree C (275 Degree F), 240V at 95 Degree C (221 Degree F).
• Heater Thermal Protection: Auto resetting thermostat turns unit off at 85Degree C(185 Degree F)
• Heater Thermal cut off at 142 dgree C (288 Degree F)
• Sound Pressure: MIN 65 dB-A to 78-A MAX@1 m
• Super Filter Assembly: Antibacterial Filter+Carbon Filter + HEPA Filter
• Adding Japanese Ag+ Ions provides an effective anti-bacterial
• All plastic 100% recyclable
• Safety Approvals:


Model

• EcMo21: White
• EcMo22: Silver
• EcMo23: White and Gray
• Worldwide Patents: USA, Europe, Taiwan, China
• Certification: UL; cUL; GS/TUV; CE/EMC, LVD; CB/TUV; RoHS; WEEE
• GreenSpect Listed; Wheel Chair Friendly
