EcFast High Speed Hand Dryer

In a compact size, 1000W high-speed hand dryers can dry hands in only 10 sec.

It is compact, only half the size of other equivalent high-speed hand dryers. But it is fast, with only 1000W power, the patented air-flow mechanism optimizes air flow to dry hands in 10 seconds while saving 80% in energy costs.

EcFast High Speed Hand Dryer

• Material : Steel
• Operation Power : 1000 W
• Drying Time: Less than 15 seconds
• Unit Size: 248 mm W x 168.50 mm H x 137.5 mm D)
• Weight: N.W 3.8 kgs (8.4lbs), G.W. 4.2 kgs (9.2lbs)
• Circuit Operation: Infrared Automatic, self adjusting
• Sensor Range: 51mm~254mm (2"~10")
• Sound Level: 75 +/- 1 dB at 1 m
• Isolation: CLASS 1

Techinical Specifications

• EcFast is made with fewer materials, occupies less space, and reduces drying time!
• Operating Voltage: 110-120V, 50/60Hz, 0.84-1.0kW;
• 220-240Vac, 50/60Hz, 0.84-1.0kW
• Warm Air Speed Output: 90 m/s [201.3 mi/h]
• Dryer delivers: 101.7 m3/h, (59.8 CFM)
• Motor Type: 11/16HP, 500W, 29000 R.P.M.Brush Type: Dual Ball Bearings
• Motor Thermal Protection: Auto-resetting Thermostat turns unit off at 105 degree C [221 degree F]
• Air Output Temperature: 55 degree C [131 degree F] (Ambient Temp. 25 degree C [77 Degree F])
• Heater Element: 500W
• Safety Approvals:


Model

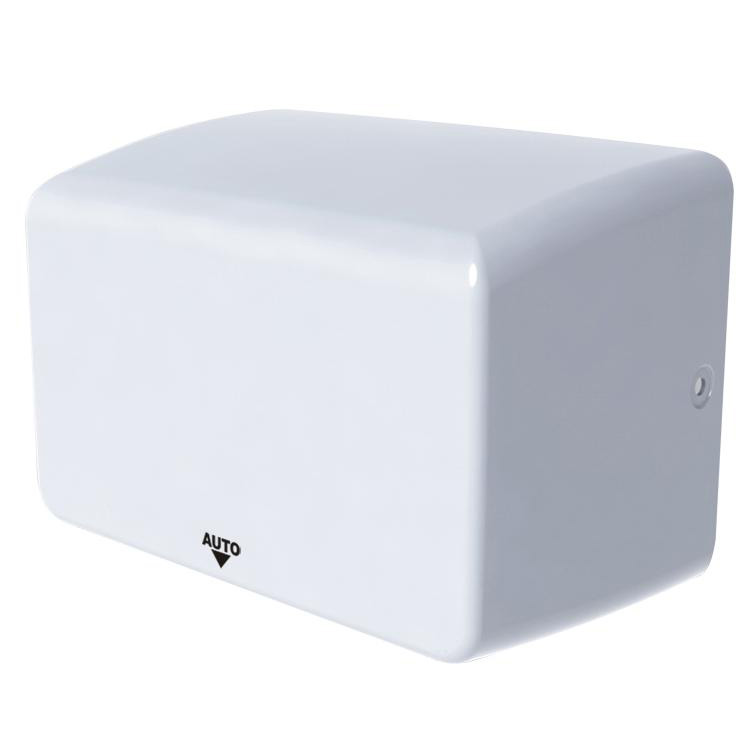

• EcFast 01: Steel, white epoxy finish.(t:1.2mm)

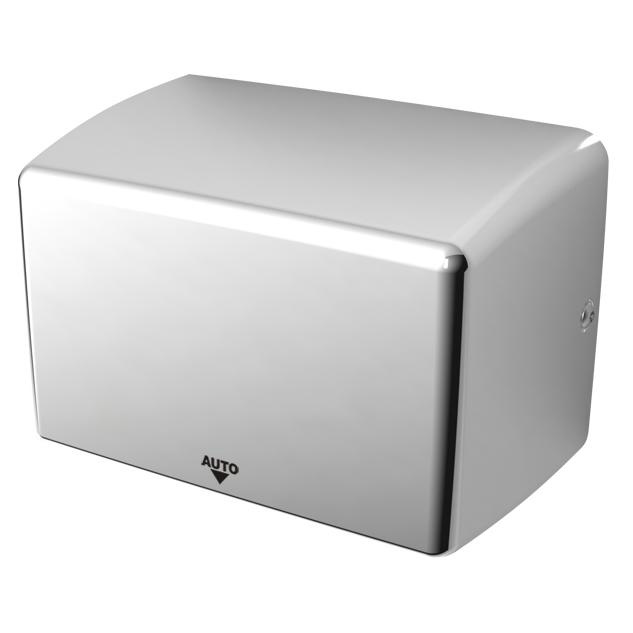

• EcFast 04: Stainless steel(#304), Bright Finished (t:1.2mm)

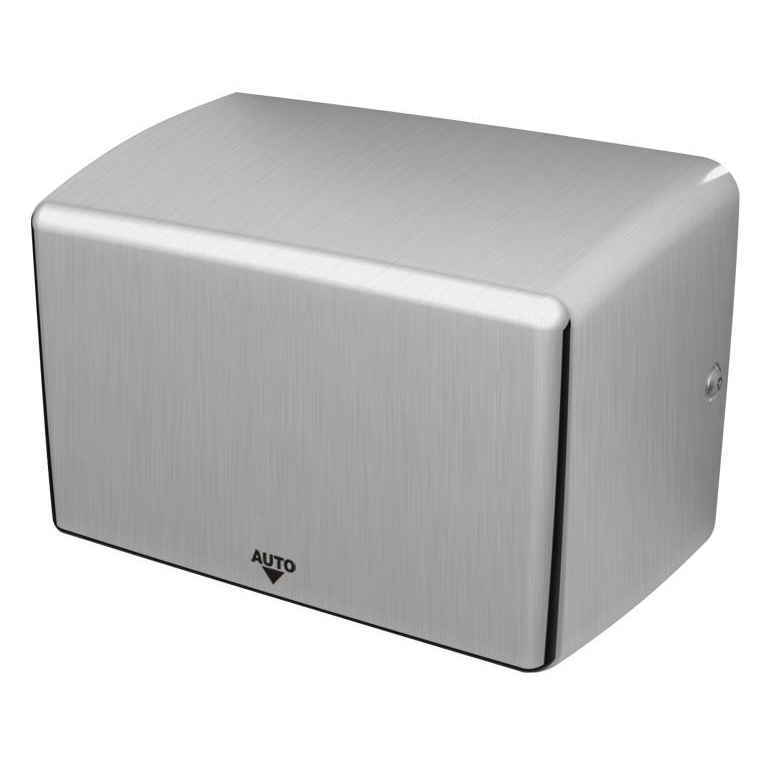

• EcFast 05: Stainless steel(#304), Satin finished. (t:1.2mm)

EcFast 01	EcFast 04	EcFast 05
